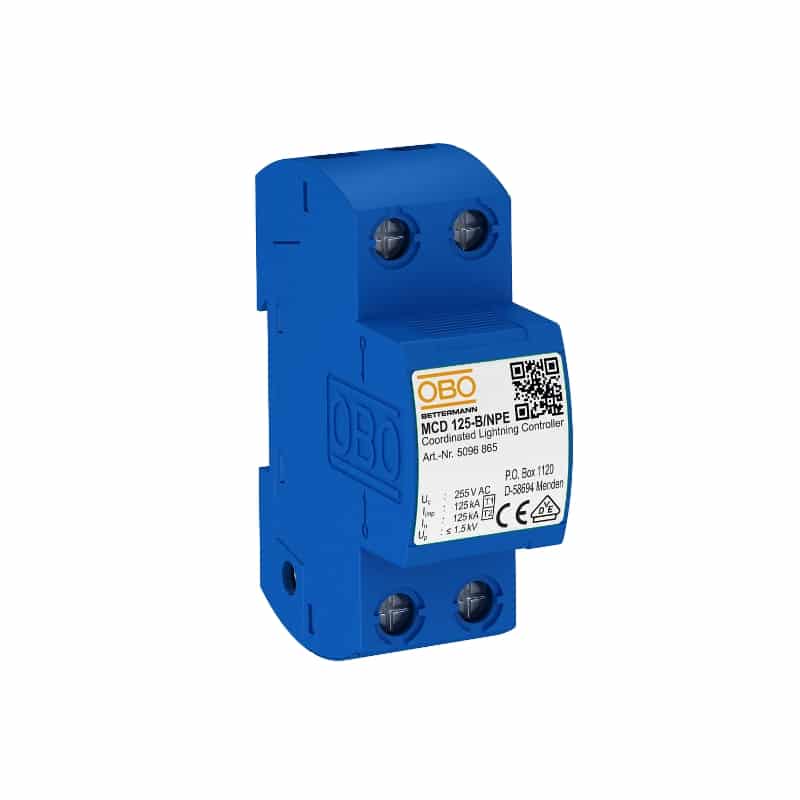

Cắt Sét Lan Truyền 1 Pha OBO MCD 125-B NPE

Description

Combination arrestor, lightning current arrestor, type 1+2, N-PE, for use in TN-S and TT networks.

MCD 125-B/NPE: Coordinated N-PE spark gap, type 1+2 to EN 61643-11. For interface 0 to 2 (LPZ) in accordance with lightning protection zone concept to IEC 61312-1 and/or VDE 0185-305.

• Arresting capacity 125 kA (10/350 µs)
• Conforms to VDN Directive 2nd Edition 2004
• Incl. plug caps for identifying the connections
• Protection level • Encapsulated, non-extinguishing spark gap

Application: Industrial systems and buildings with external lightning protection of Classes I to IV.
